 MERRY MONARCH POOL VILLAS

Goseong Marina Social Club




































Programme : 6 Pool villas
Location : Hoehwa-myeon, Goseong-gun, Gyeongsangnam-do
Site Area : 5,763m²
Surface : 422.94m²
Year : 2017 - 2018
Client :

Haneoul
Partners : jungamm architects
Status : Completed
‌‌Photographer : Kyungsub Shin

메리모나크 마리나 클럽의 숙소동인 풀빌라 부지는 소나무가 가장 많은 곳으로, 소나무 사이 사이에 1층 규모의 풀빌라 6개동을 배치하여, 건축과 자연이 조화롭게 공존할 수 있도록 계획, 최초에 소나무의 위치를 측량하여 최대한 소나무를 보존하는 방향으로 설계를 진행하였다.
소나무 뿌리에 간섭되지 않도록 독립기초를 적용하였으며, 최대한 대지와의 접촉을 줄이기 위해 경사지에 건물이 떠있는 형태로 계획하였다. 중앙에 마당의 역할을 하는 테라스를 두고 거실과 침실을 'ㄷ'자 형태로 배치하여 전통한옥에서의 전이적인 공간개념을 적용하였다.

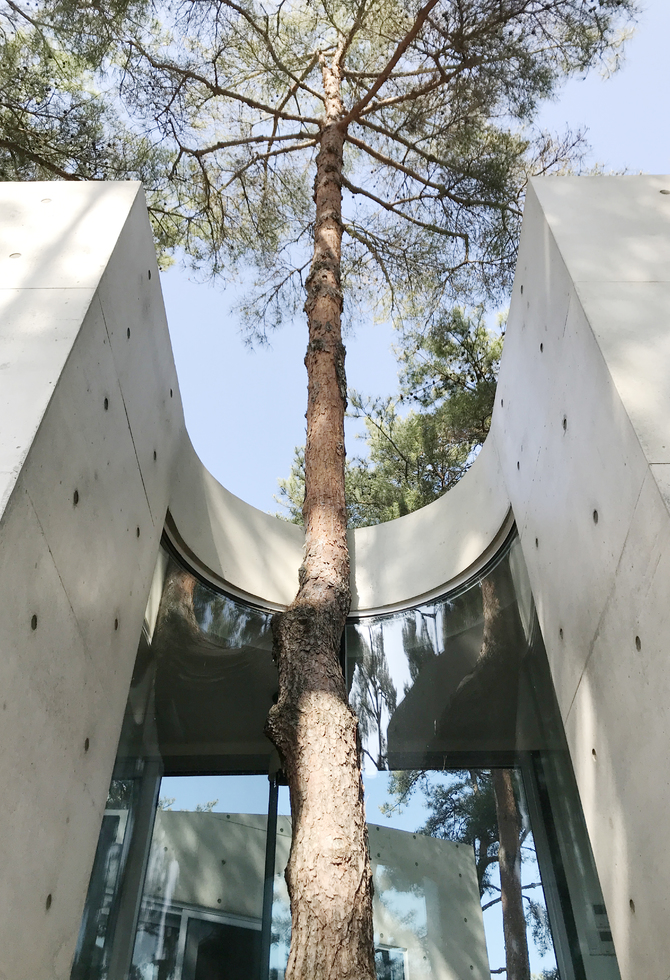

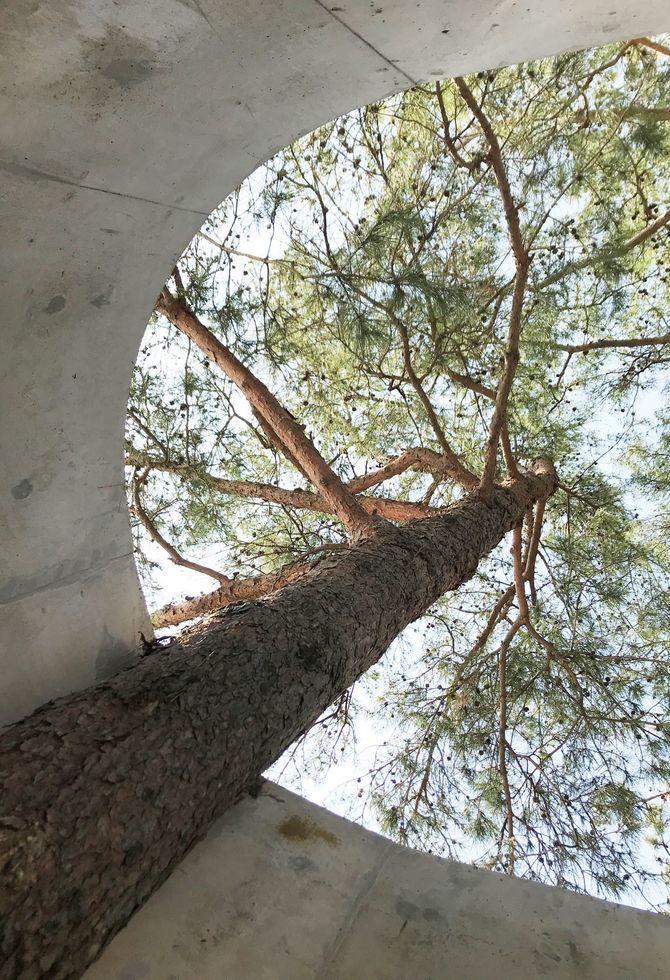

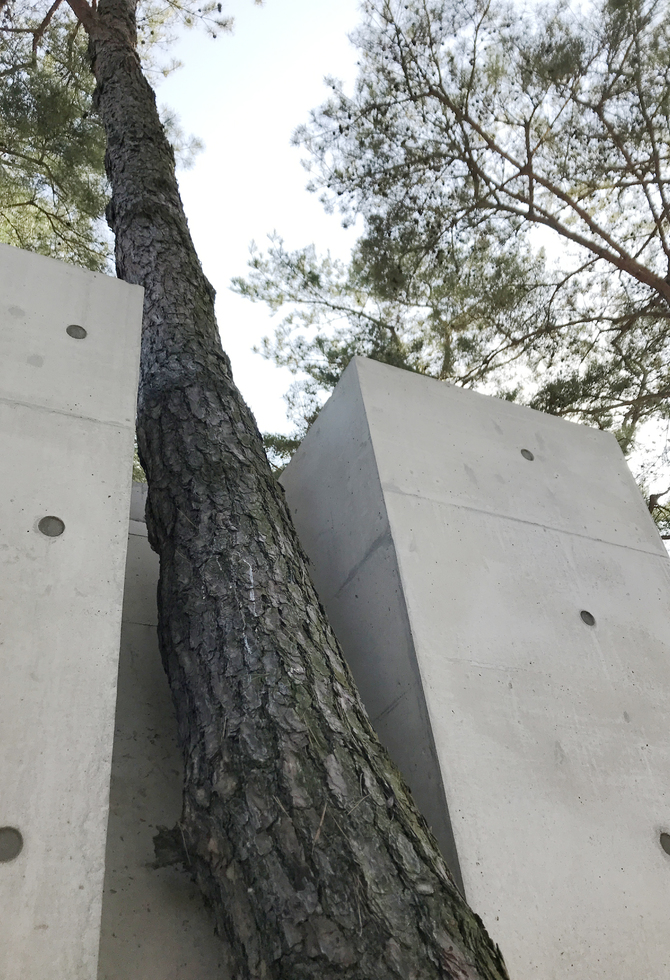

착공 후 일부 휘어진 소나무로 인하여 현장에서의 설계변경과 공사가 동시에 진행되었다. 소나무와 건축이 만나는 부분에서 각 각의 상황에 맞는 디테일을 적용하였으며, 최종적으로 이식된 몇 그루의 소나무를 제외하고 모든 소나무들을 원래대로 보존하였다.

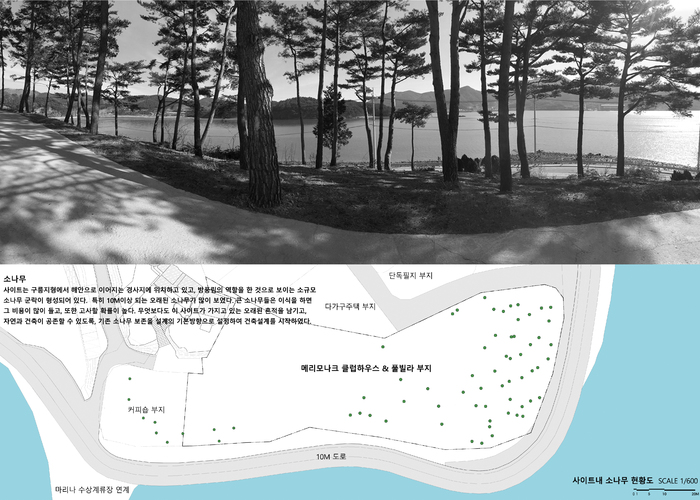

The pool villas site is located on a coastal slope and has a small pine colony that seems to have served as a windbreak. Especially, there are many old pine trees that are more than 10m long. Large pine trees are more likely to die if transplanted, and the cost is also high. Above all, leaving old traces of the site, the project was carried out with a design strategy to preserve pine trees for the coexistence of nature and architecture.

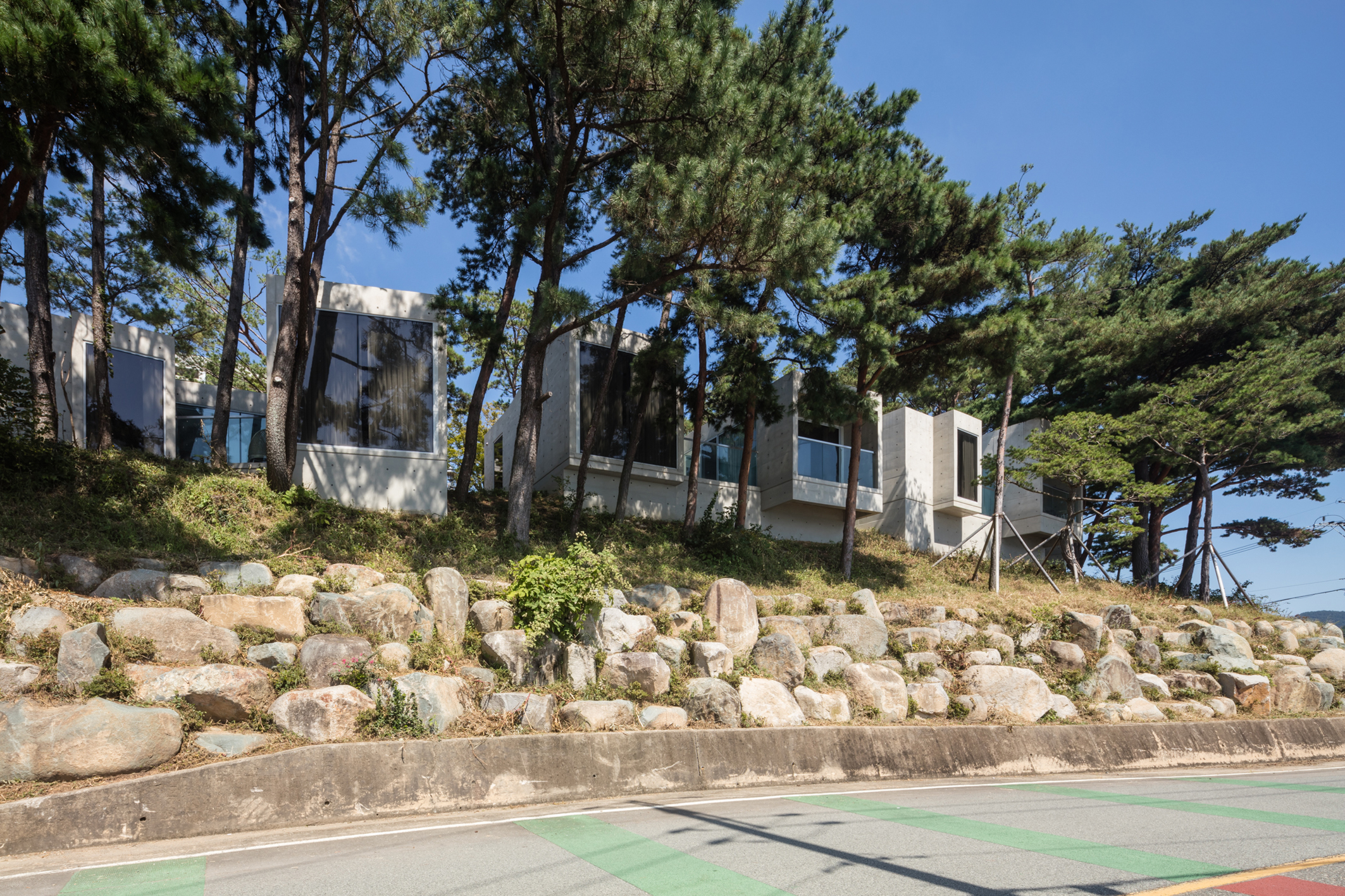

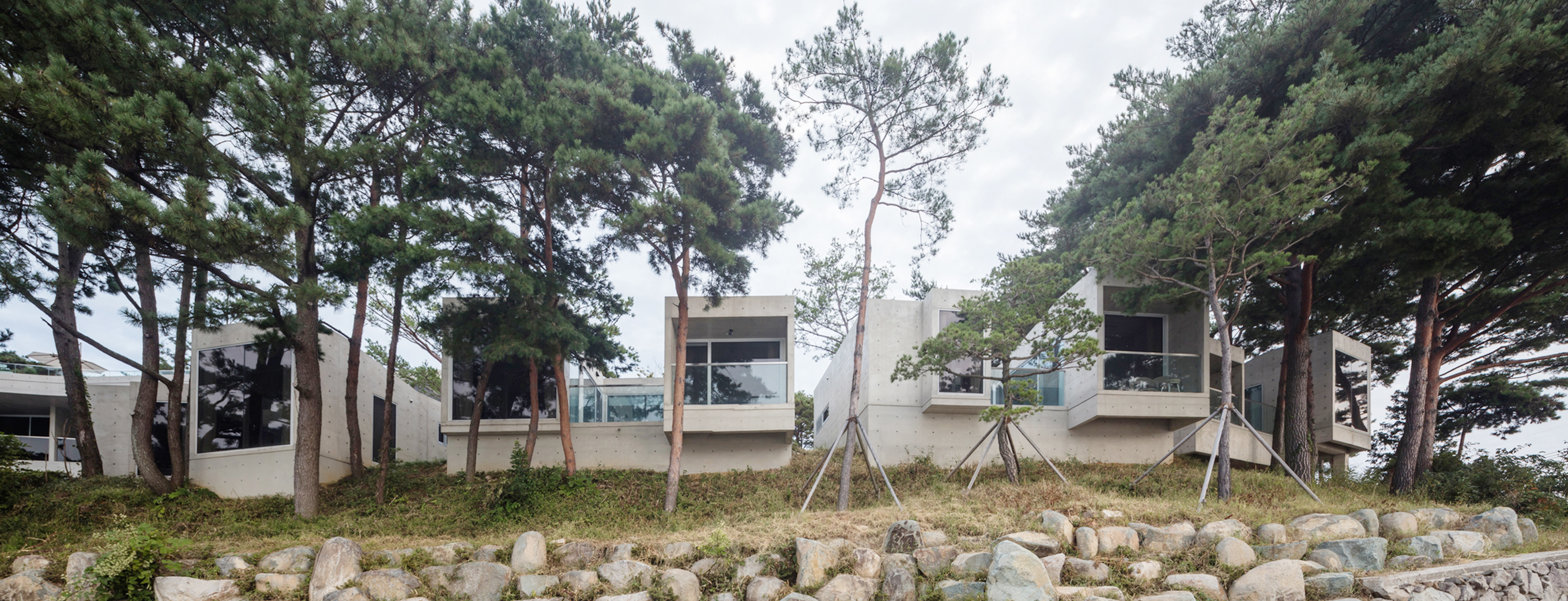

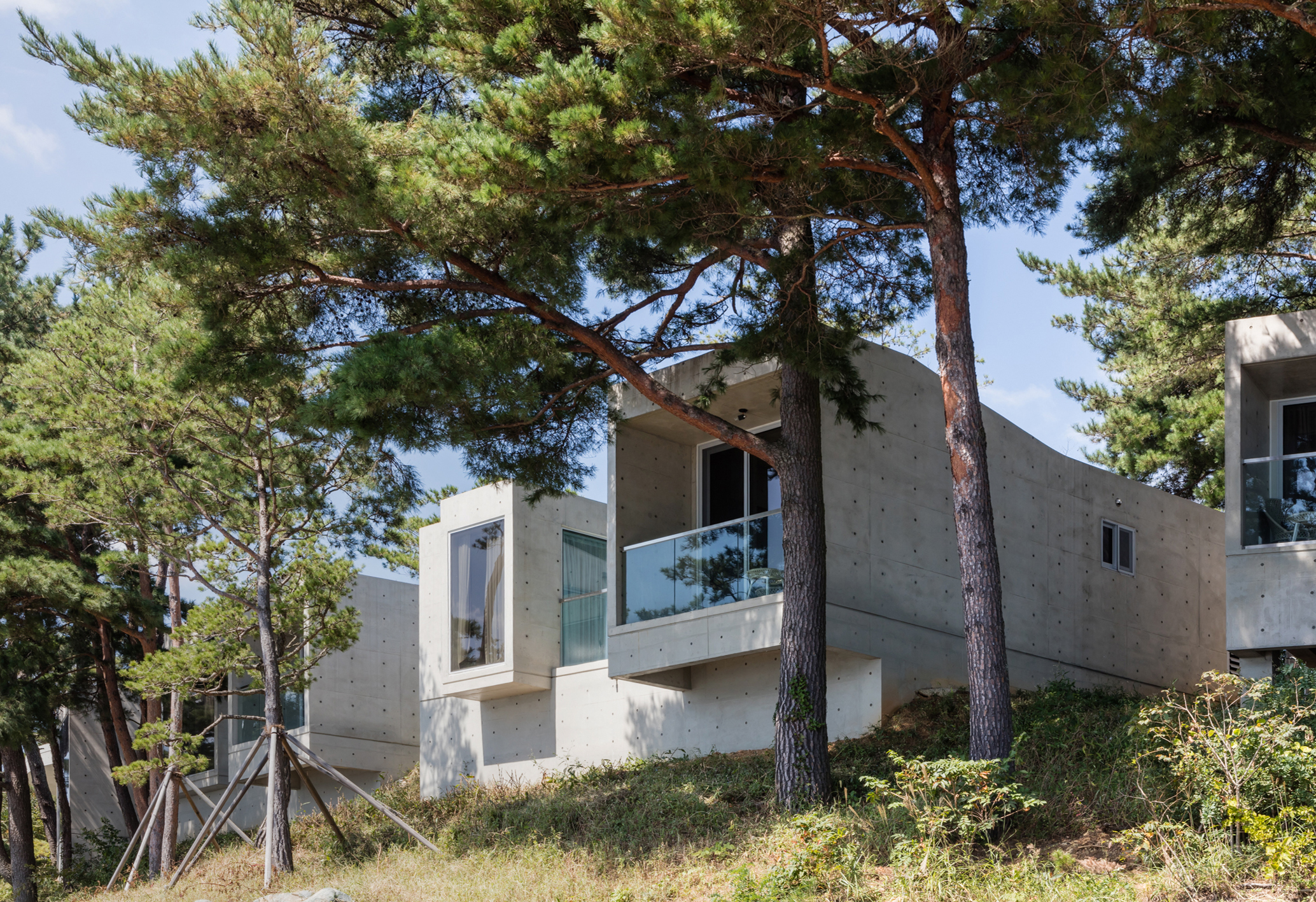

Pool villas, a marina club accommodation, is located on the slopes with the largest number of pine trees. Six one-story villas were arranged between pine trees to ensure that architecture and nature coexist harmoniously. In order to preserve pine trees at first, the location of pine trees was accurately measured, and the site plan of the pool villa was carried out based on it. An independent foundation was applied to prevent interference with the roots of pine trees, and it was designed in the form of pilotis to reduce contact with the land as much as possible. Patio is a transition space concept that represents traditional Korean architecture, and the functions are arranged in a 'ㄷ' form around the patio to consider privacy and views at the same time. During the construction, the design change and construction were carried out simultaneously due to some bent pine trees. The construction was completed by applying appropriate details considering the situation of pine trees and architecture.
